Tandem QLED Cavity Optimization

Yuan et al. (2024): spectrum-weighted cavity maps for single-emitting-layer and tandem top-emitting QLEDs

AuthorYuhan LI

Very Stable and Efficient Tandem Quantum-Dot Light-Emitting Diodes Enabled by IZO-Based Interconnecting Layers

Authors: Cuixia Yuan, Zinan Chen, Fengshou Tian, and Shuming Chen

Journal: Nano Letters 24(24), 7541–7547 (2024) · Comparison target: Figure 2c-d

This case reproduces the two cavity-thickness maps in Figure 2c-d of Yuan et al. A spectrum-weighted Mode calculation sweeps ZnMgO and top-IZO thickness for a single-emitting-layer QLED and for a two-emitter tandem QLED. The calculated peaks are 35.80% and 31.87%, within 0.76 and less than 0.01 percentage point of the paper's reported anchors.

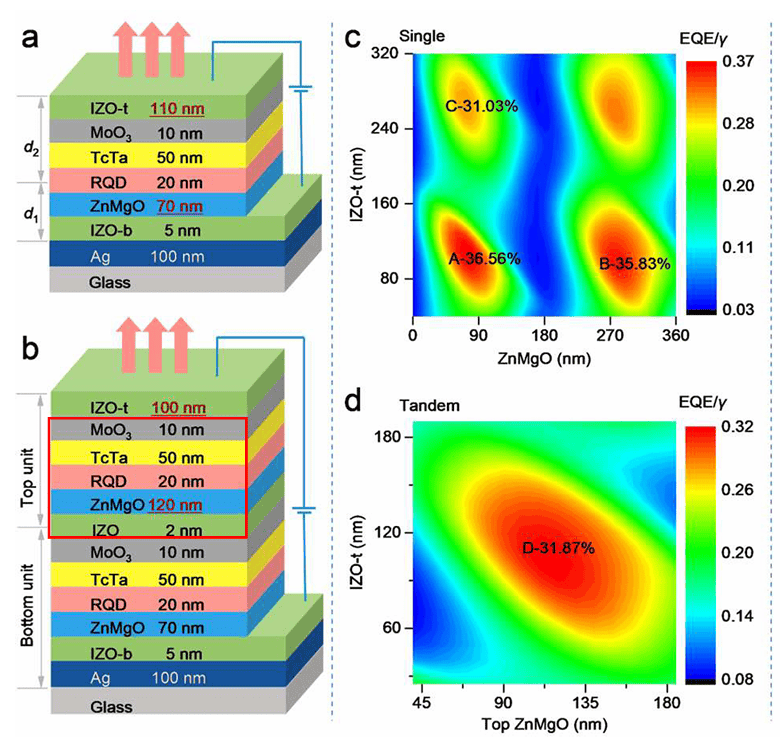

Yuan Figure 2a-d — single- and tandem-QLED stacks beside their calculated cavity-thickness maps.Yuan et al., Nano Letters 24, 7541–7547 (2024), Figure 2a-d

Panels a-b identify the two cavities; panel c places the single-layer maximum at 36.56%, while panel d places the tandem maximum at 31.87% and shifts the high-value region to the top-unit cavity dimensions.

Prerequisite: read Emission Modeling and Parameter Sweep. The complete grids contain 4,104 and 2,916 combinations, so use the exported models and allow tens of minutes for each browser run, depending on service load.

Background

Top-emitting QLEDs form a microcavity between a semitransparent IZO electrode and an Ag mirror. Changing either the electron-transport-layer thickness or the top-electrode thickness changes the optical phase, field distribution, and fraction of generated light that reaches air. A tandem device adds a second emitting unit, so a useful cavity must support both source positions across the QD emission band.

The paper reports both optical optimization and device stability. This case reproduces only the optical maps EQE/γ; it does not model drive voltage, interconnecting-layer charge generation, or lifetime.

Mapping the Paper to the TMM Model

Single-emitting-layer device (output side → Ag)

Layer	Thickness
IZO top electrode	nominal `110 nm`; swept `40–320 nm`
MoO₃	`10 nm`
TCTA	`50 nm`
Red-QD EML	`20 nm`
ZnMgO	nominal `70 nm`; swept `5–360 nm`
IZO bottom	`5 nm`
Ag mirror	`100 nm`

Tandem device (output side → Ag)

Layer	Thickness
IZO top electrode	nominal `100 nm`; swept `20–180 nm`
Top MoO₃ / TCTA / red-QD EML	`10 / 50 / 20 nm`
Top ZnMgO	nominal `120 nm`; swept `40–180 nm`
IZO interconnect	`2 nm`
Bottom MoO₃ / TCTA / red-QD EML	`10 / 50 / 20 nm`
Bottom ZnMgO	`70 nm`
IZO bottom	`5 nm`
Ag mirror	`100 nm`

Both red-QD layers use the same digitized PL spectrum. This reproduction interprets the digitized PL ordinate as a photon-probability spectrum. The source plot does not state its spectral unit; if it represents radiant power instead, it must first be converted by photon energy and the weighted result can change.

The paper combines the two active-unit contributions as

\frac{EQE_{\mathrm{tandem}}}{\gamma_{\mathrm{tandem}}} = \frac{1}{2}\left( \frac{EQE_{b}}{\gamma_{b}}+ \frac{EQE_{t}}{\gamma_{t}} \right).

Here, $EQE_{\mathrm{tandem}}$ , $EQE_b$ , and $EQE_t$ are the external quantum efficiencies of the tandem device, bottom emitting unit, and top emitting unit. The corresponding $\gamma_{\mathrm{tandem}}$ , $\gamma_b$ , and $\gamma_t$ are their electrical or charge-balance efficiencies. Subscripts $b$ and $t$ denote the bottom and top units. The factor $1/2$ follows the paper's assumption that the two units have equal charge balance and that $\gamma_b=\gamma_t=\gamma_{\mathrm{tandem}}/2$ . The equal-weight two-emitter setting implements this average directly.

With q₀ = 0.9 and the paper's comparison after dividing out $\gamma$ , Mode Top Outcoupling maps to “effective radiative yield × top-outcoupled fraction” and is used as the optical $EQE/\gamma$ quantity. It is neither pure LEE nor a measured EQE because the device's actual charge balance is not included.

Reproduction Target and Acceptance Criteria

The single-emitting-layer map must place its strongest region near 70–80 nm ZnMgO and about 110 nm top IZO.
Its peak must agree with the paper's 36.56% anchor within one percentage point.
The tandem map must place its strongest region near 110–120 nm top ZnMgO and 100–110 nm top IZO.
Its peak must agree with the paper's approximately 31.87% anchor within one percentage point.
Every grid point must complete without a solver error; missing cells would make the optimum comparison ambiguous.

Modeling Path in Dreapex TMM

Structure

Import the corresponding model. The 100 nm Ag mirror is optically thick, so glass behind it is omitted from the emission calculation.

Optical settings

Enable Mode and choose spectrum-weighted averaging. The table below records the emitter, wavelength, and sweep settings.

This case does not use Optimize. If a notice related only to Optimize appears at the bottom of the page, you can continue with Sweep; it does not block this case.

Example Setup

Single-emitting-layer model

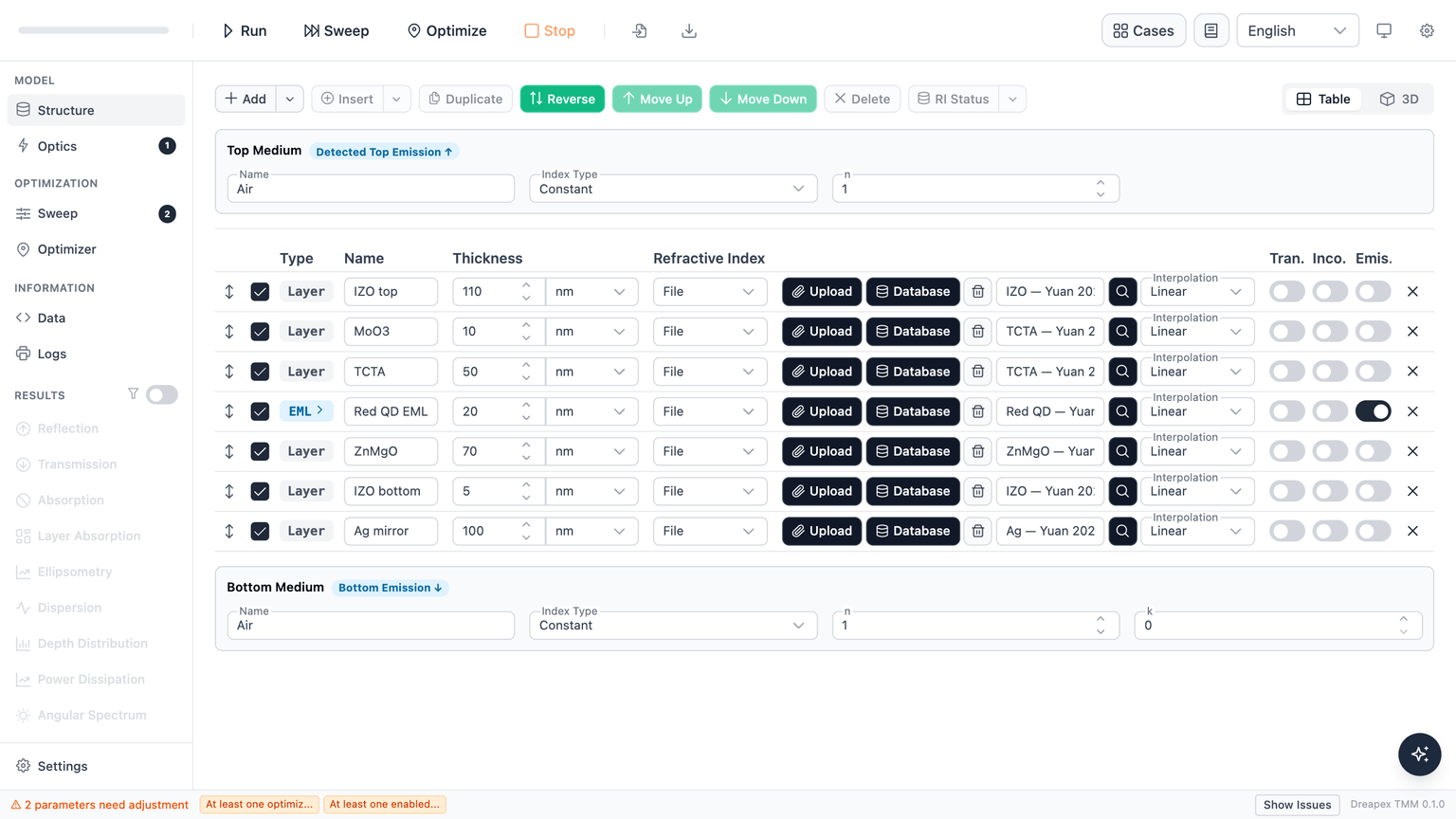

Single-emitting-layer QLED structure

The two swept layers sit on opposite sides of the QD source and jointly tune the cavity phase.

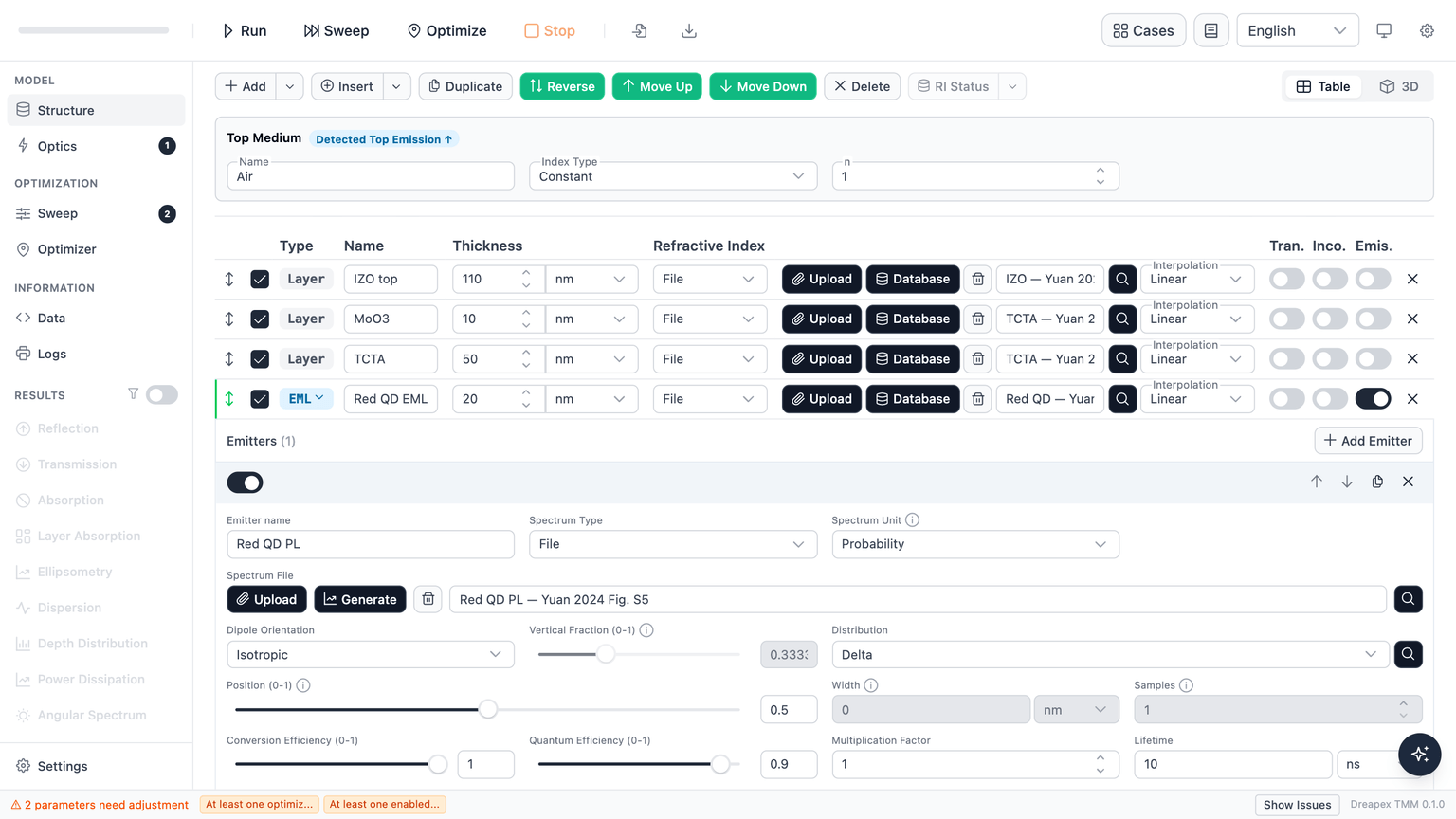

Single red-QD emitter settings

Both QD layers in the tandem model reuse this emitter setting; only the second source position is added.

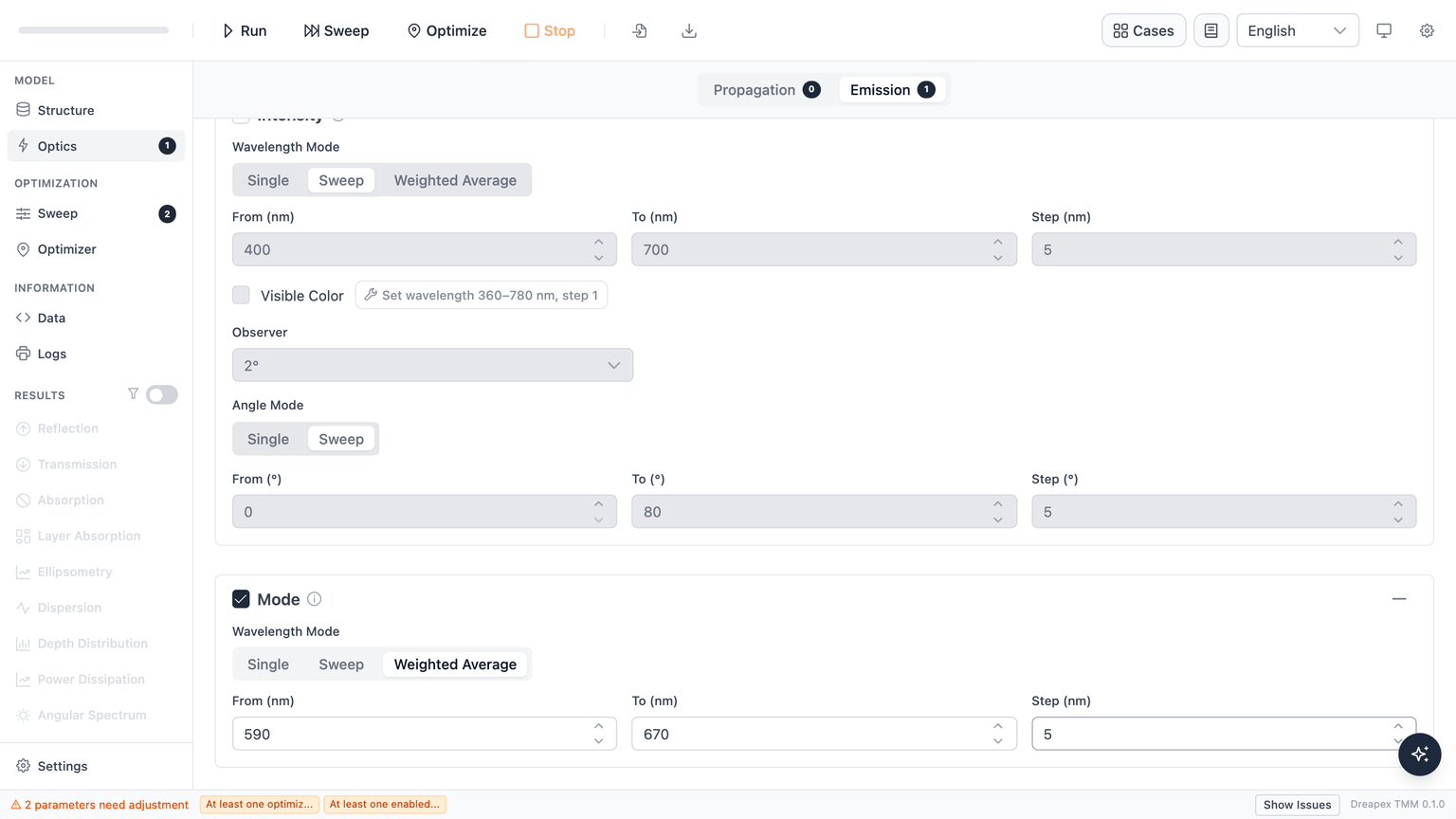

Spectrum-weighted Mode detector for the single device

Weighted Average includes the QD PL weight in every thickness combination's Mode result.

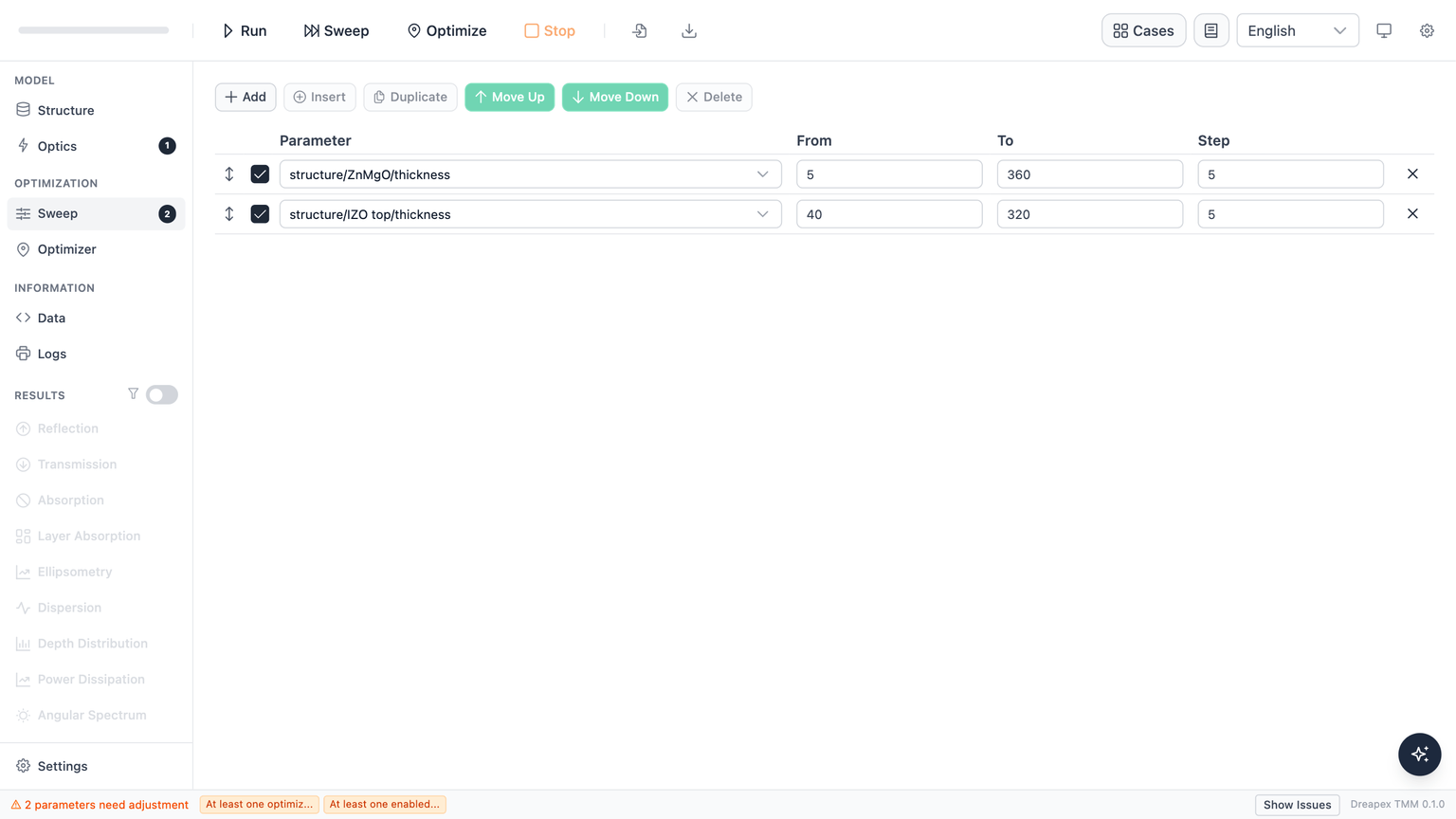

Single-device ZnMgO and top-IZO sweep

This sweep produces the single-emitter cavity map compared with Figure 2c.

Tandem model

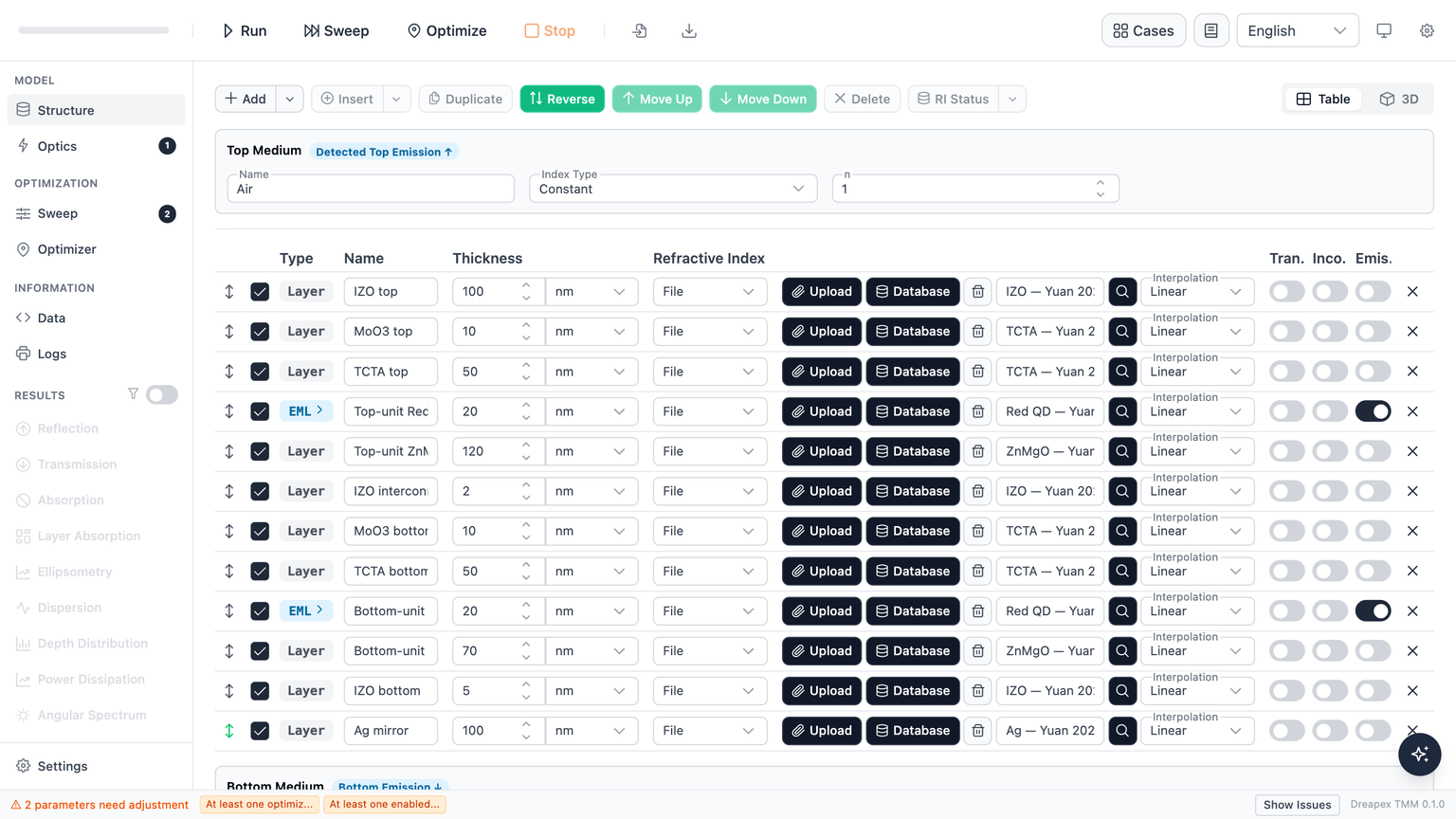

Complete tandem structure from the output electrode to the Ag mirror

The two QD sources lie on opposite sides of the IZO interconnect and occupy different cavity positions.

Top-unit red-QD emitter settings

The bottom unit uses the same setting and is not shown again.

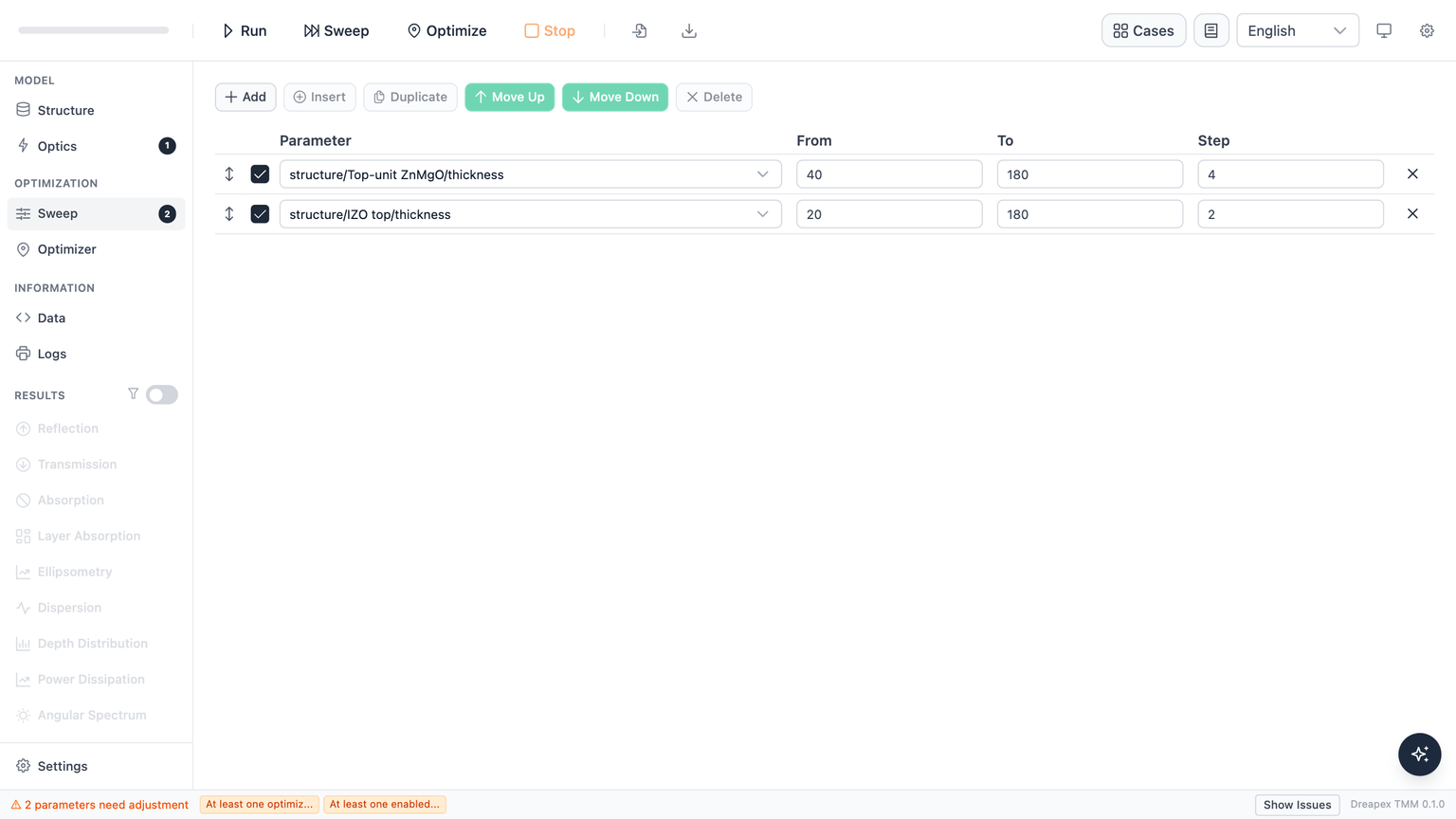

Tandem top-ZnMgO and top-IZO sweep

This sweep produces the tandem cavity map compared with Figure 2d.

Setting	Single-emitting-layer model	Tandem model
Enabled EMLs	One red-QD EML	Two red-QD EMLs, each with weight `1`
Emitters	Digitized PL; Probability; Isotropic; Delta at relative position `0.5`; quantum efficiency `0.9`	Same as the single-layer model
Mode	Weighted Average; `590–670 nm`; step `5 nm`; Top Outcoupling	Same as the single-layer model
Horizontal axis	ZnMgO: `5–360 nm`, step `5 nm`	Top ZnMgO: `40–180 nm`, step `4 nm`
Vertical axis	Top IZO: `40–320 nm`, step `5 nm`	Top IZO: `20–180 nm`, step `2 nm`
Grid	`72 × 57 = 4,104` combinations	`36 × 81 = 2,916` combinations

Simulation Results and Comparison with Figure 2

Panels c-d use the same color-map logic for the single and tandem devices, allowing the peak values and high-value regions to be compared directly.

Figure 2c: single-emitting-layer cavity map

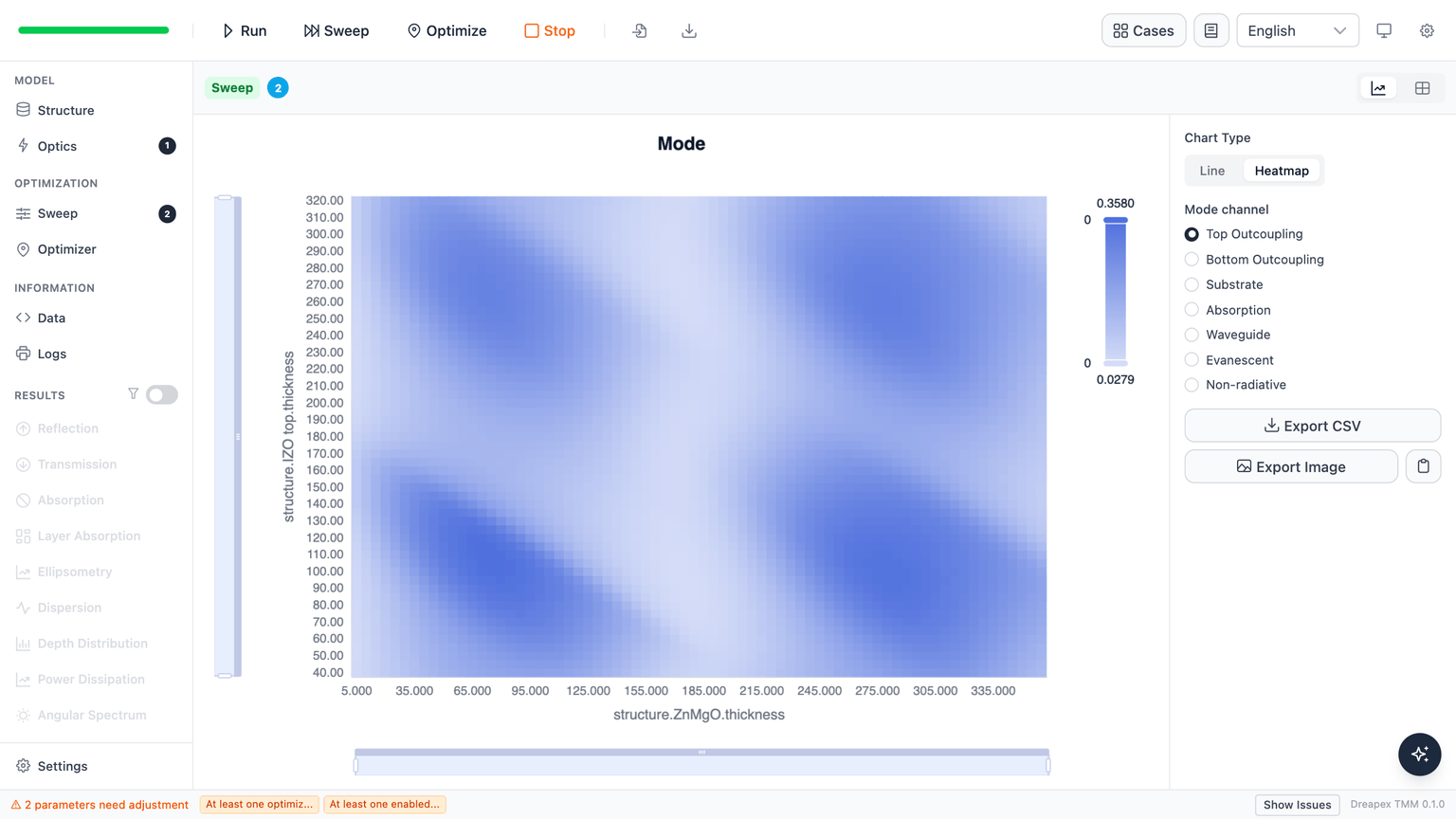

Single-emitting-layer spectrum-weighted top-outcoupling heatmap

High values form curved bands across both thickness axes, showing that ZnMgO and top IZO compensate cavity phase together. All 4,104 points completed without errors. The maximum is 35.80% at 75 nm ZnMgO and 110 nm top IZO. The paper's strongest region is centered on the same nominal cavity and reaches 36.56%, a difference of 0.76 percentage point.

Figure 2d: tandem cavity map

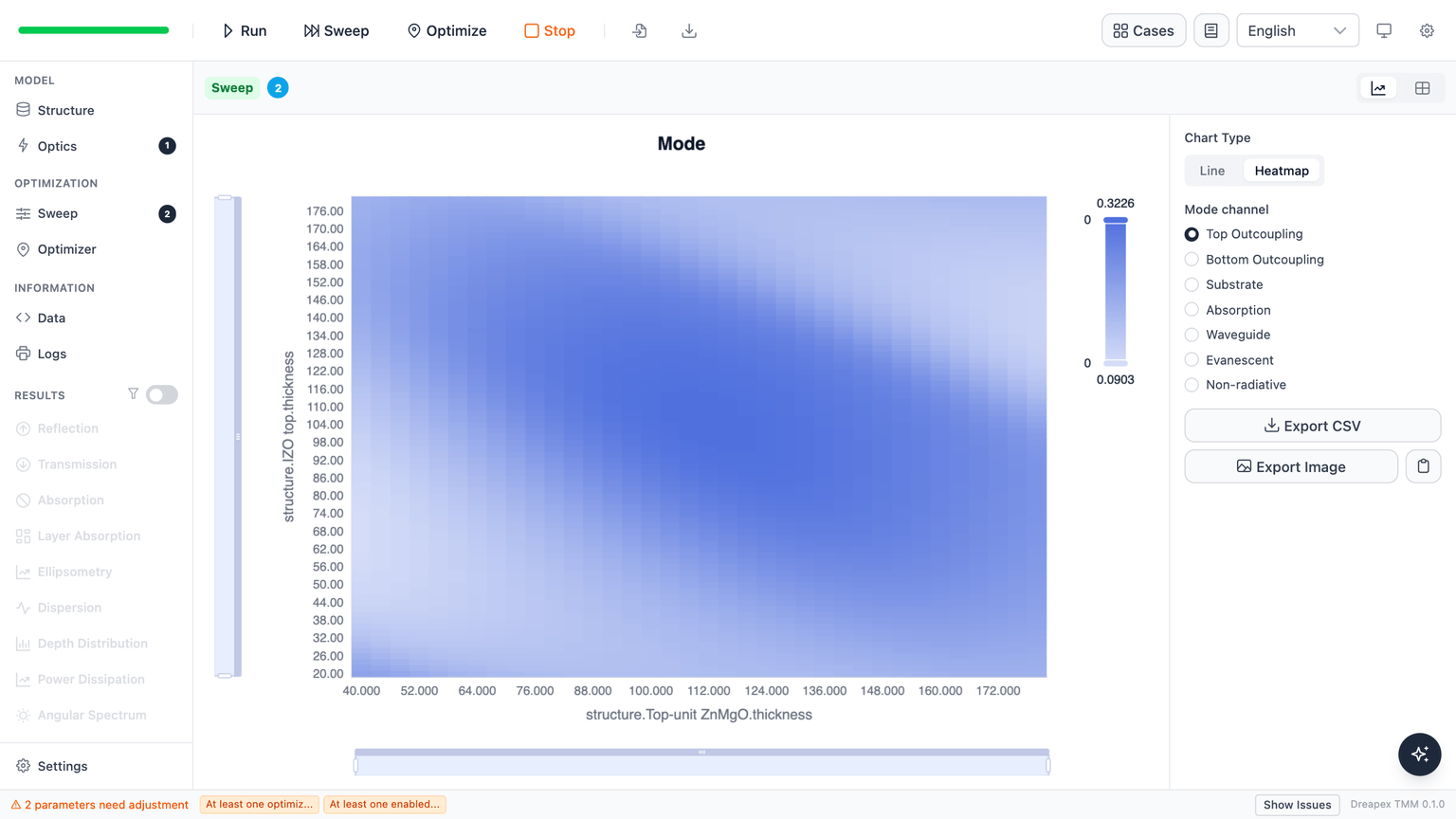

Tandem spectrum-weighted top-outcoupling heatmap

This reproduction uses 4 nm steps for top ZnMgO and 2 nm steps for top IZO so the complete result remains renderable in the browser chart. The main ridge is centered around 112–120 nm top ZnMgO and 100–106 nm top IZO and extends diagonally along both axes, showing that the two thicknesses compensate cavity phase together. All 2,916 points completed without errors. The maximum is 31.87% at 112/106 nm; the paper's nominal 120/100 nm design gives 31.72%, only 0.14 percentage point below the maximum.

Quantity	Paper	Simulation
Single-device peak	`36.56%`	`35.80%`
Single optimum	near `70/110 nm`	`75/110 nm`
Tandem peak	about `31.87%`	`31.87%`
Tandem optimum	near `120/100 nm`	`112/106 nm`

The single-device result closely reproduces the peak magnitude and design region. The tandem peak magnitude is effectively identical on the reported precision; its optimum sits 8 nm lower in top ZnMgO and 6 nm higher in top IZO than the nominal paper design.

Deviation Analysis

The Supporting Information plots provide refractive index but not extinction coefficient for RQD and TCTA; their k values are explicitly set to zero.
MoO₃ reuses the TCTA optical constants, following the approximation stated in the Supporting Information rather than an independent MoO₃ dataset.
The PL and optical-constant curves are digitized. Sampling and interpolation can move a narrow cavity optimum by several nanometres.
Each EML is represented by one central isotropic delta emitter. A distributed recombination zone or unequal unit weights would reshape the tandem map.
The planar model excludes electrode roughness and scattering. It predicts the optical EQE/γ map, not the measured device EQE or lifetime.

Further Extensions

Run a 1 nm local sweep around the two maxima to estimate the continuous optimum.
Replace the TCTA-based MoO₃ approximation with measured complex dispersion.
Sweep the relative weights of the two tandem emitters to represent electrical imbalance.
Add emitter-position variables to quantify the tolerance of both recombination zones.
